Equipped with a two-port Ethernet switch and auto-sensing Power over Ethernet circuitry, the SoundPoint IP 600 installs easily. It provides a flexible IP communications solution delivering excellent voice quality. An intuitive user interface offers dedication, single-button access to common telephony features. The high-resolution display supplies content for call information, directory access, system status, and future applications.

STEP 1
Log into your phone's configuration utility.

STEP 2

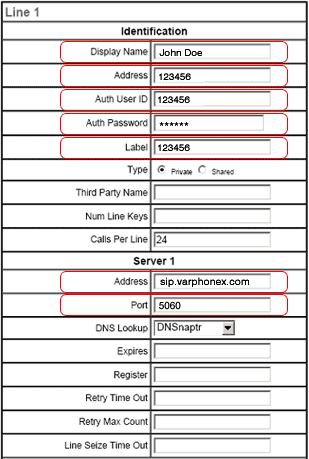

Click on the "Lines" tab. Under "Line 1" modify the following parameters:

Identification
Display Name: Enter your full name.
Address: Enter your 7 digit Virtual Number.
Auth User ID: Enter your 7 digit Virtual Number.
Auth Password: Enter your VarPhonex password.
Label: Enter your 7 digit Virtual Number.

Server 1
Address: sip.varphonex.com
Port: 5060

Click on "Submit" to save your changes.

STEP 4
Make Calls!
